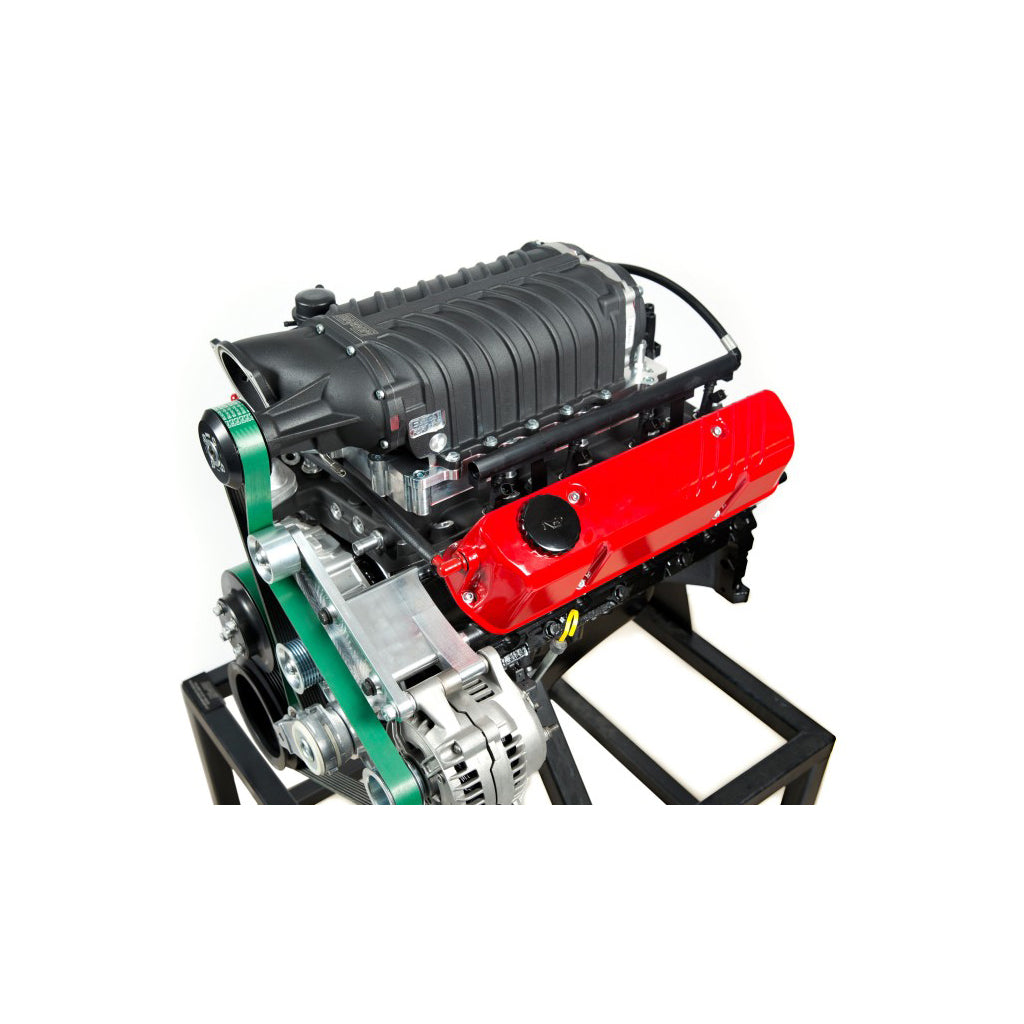

TVS2300 Holden 5.0L V8

Product Code: 99-EK-A13351-HOLD5L

The Harrop TVS2300 Supercharger Kit offers the latest in supercharger technology for the Holden 5.0L V8 Engine with EFI heads. The front drive / front inlet design allows for a shorter less restrictive intake path allowing for improved airflow and superior performance with an integrated Supercharger Bypass System to relieve boost under light load conditions. The Supercharger Manifold features a high-density water to air intercooler system, with a 36mm thick intercooler brick.

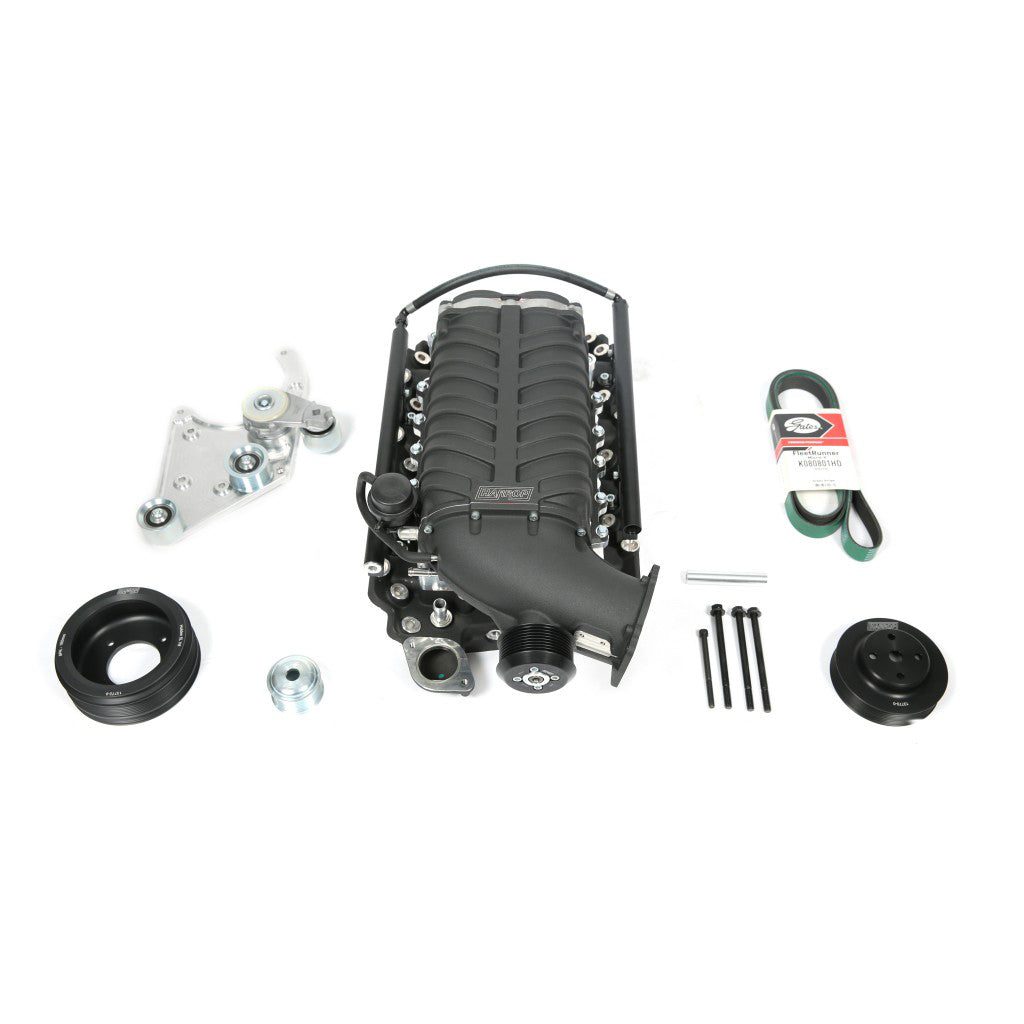

TVS2300 Supercharger Kit for Holden '5.0' V8 engines includes:

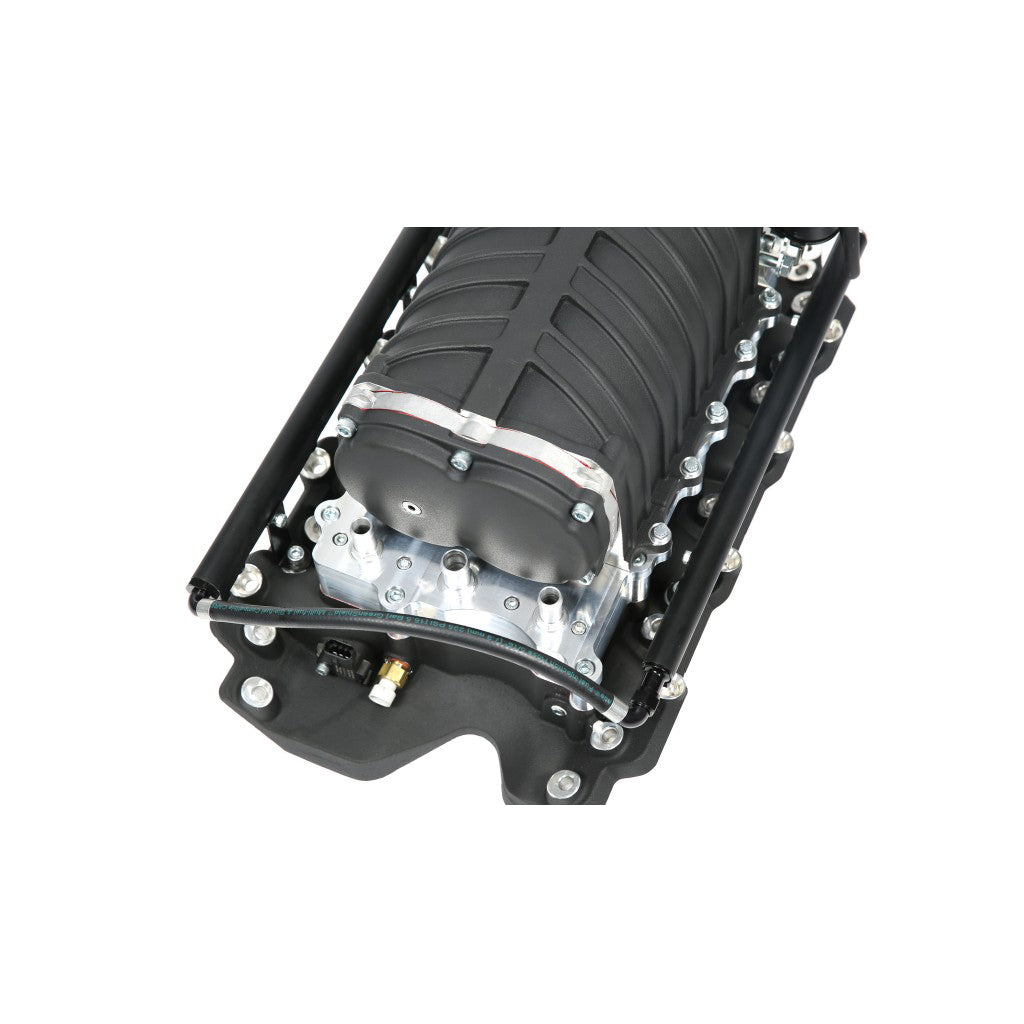

• Supercharger Intake Manifold including charge-air intercooler, MAP sensor (Late model LS3 style) and Fuel Rails
• Harrop TVS2300 FDFI Supercharger with Straight or LH inlet cover orientation available

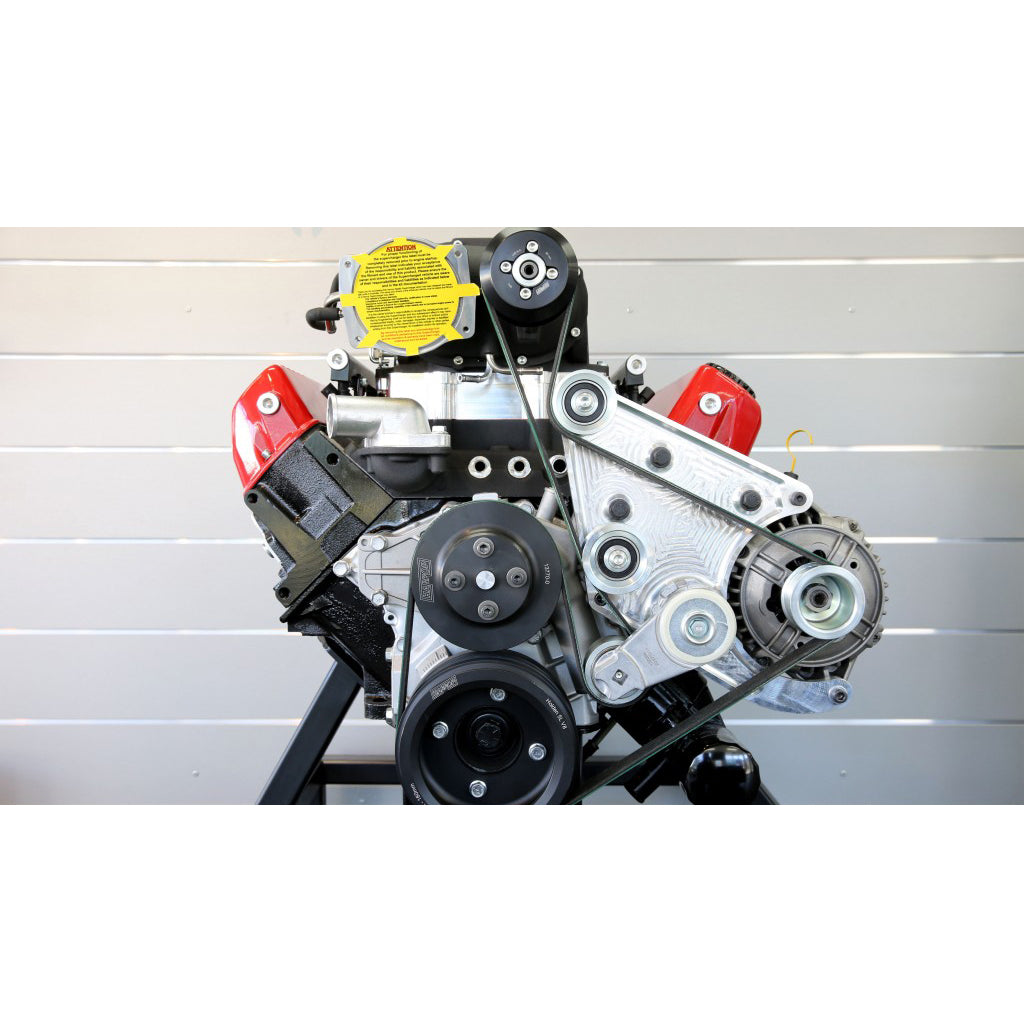

• 8PK FEAD drive system including automatic tensioner, Crank Pulley, Alternator Pulley, Water-pump Pulley, P/S pulley and Supercharger drive belt

• Retains all factory ancillaries including A/C, Power Steering, Distributor, Heater, Thermostat, Coolant Temp Sensors etc

*NOTE: Supercharger drive system requires late VT 5L Commodore spec A/C compressor and alternator. Pre-VT A/C compressor and alternator are not supported.

Available options include:

• Front-mount Intercooler Radiator, Electric Intercooler Pump and Coolant Reservoir
• Cable Throttle Body Bracket and Screws
• Injectors

As shown in the video below, 700-800HP is achievable with a 355ci engine, results will vary with engine specification and calibration.

Downloads:

• Holden 5L V8 Supercharger Kit Install Guide
• Holden 5L V8 Supercharger Kit Tech Guide
